X2m

Colorlite X2m LED Professional Display Controller Main Features:

Inputs

● Input resolution: Max 1920X 1080@60Hz.

● Signal sources: 2XHDM1.4, 1XDVI, 1XVGA, 1XCVBS.

● U disk interface: 1 x USB.

Output

● Download capacity: 1.3 million pixels.

● Maximum width is 3840 pixels or maximum height is 2000 pixels.

● 2 Gigabit Ethernet output ports.

● Supports Ethernet port duplication.

Sound

● Input: 1X 3.5mm.

● Output: 1X3.5mm, support HDMI and DP audio output.

job

● Supports switching, cropping and zooming.

● Supports screen shift.

● Supports screen adjustment: contrast, saturation, chroma, brightness compensation

And the intensity of adaptation.

● Supports converting the limit range to the full range input color space.

● Supports sending and reading screen correction factor back, advanced stitching.

● Supports hdcp1.4.

● Supports precise color management

● Supports better gray level at low brightness, can effectively maintain the full display of gray scale under low brightness.

● 16 preset scene.

● Play photos and videos from U-disk.

● OSD forU-disk operation and screen adjustment (remote controller optional).

Control

● USB port for control or serial.

● RS232 protocol control.

● Infrared remote control (optional)

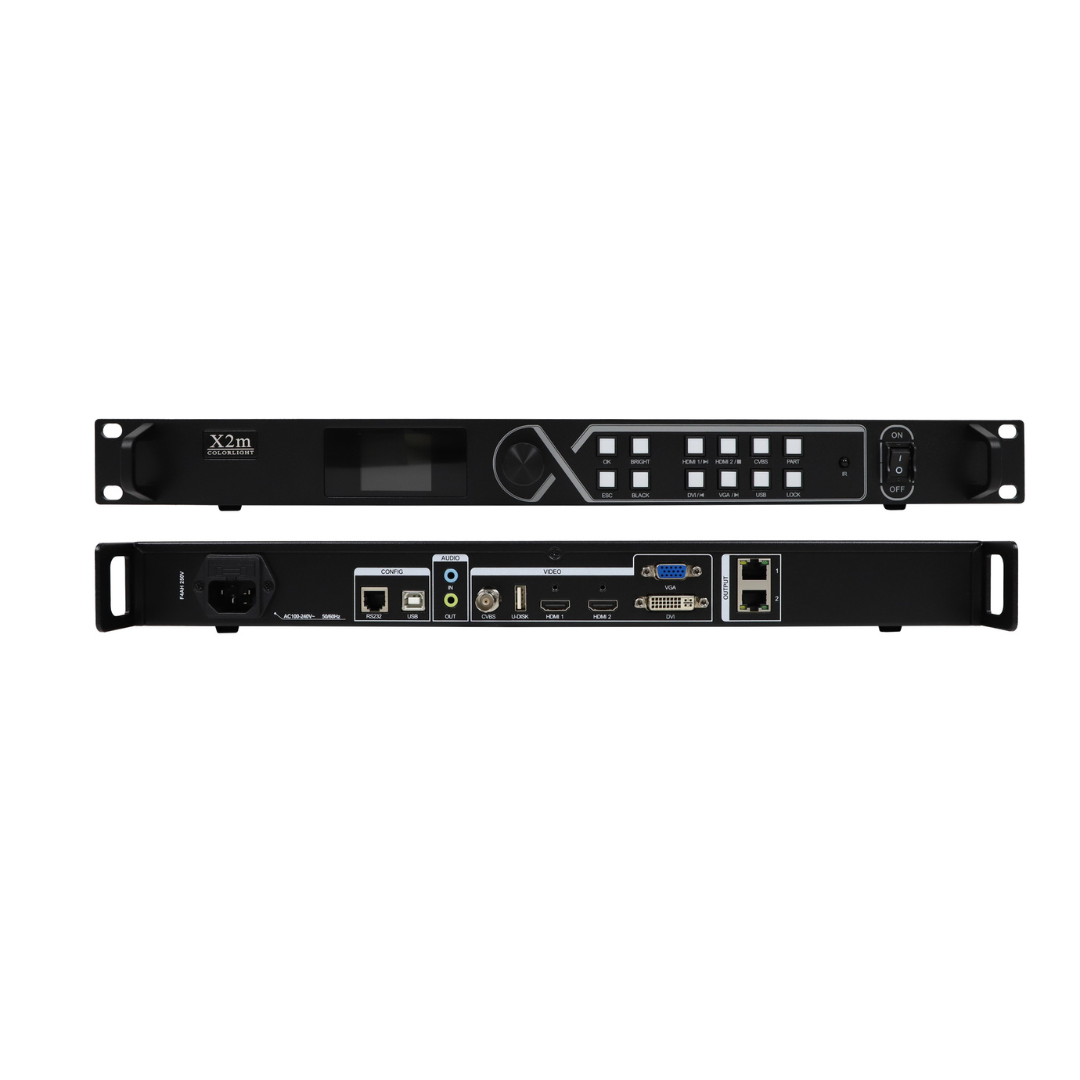

Colorlite X2m LED Display Professional Home Controller Pictures:

The X2m device features the following specifications:

• Loading capacity: 1.3 million pixels
• Maximum width: 3840 pixels
• Maximum height: 2000 pixels
• Inputs: 2×HDMI 1.4, 1×DVI, 1×CVBS, 1×VGA, 1×USB
• Maximum resolution: 1920×1080 @ 60Hz
• Outputs: 2×1G Ethernet
• Control: Via USB or RS232
• Video processing: Cropping, scaling
• Layers: 1
• Presets: 16

Data Sheet.PDF
